In modern packaging and industrial printing, the horizontal rotary automatic screen printing machine has become a preferred solution for high-speed, high-precision multi-color printing. Compared to traditional vertical rotary screen printing machines, horizontal rotary systems offer superior automation, flexibility, and integration capabilities.
This article provides a detailed overview of its working principle, advantages, and key technical features.

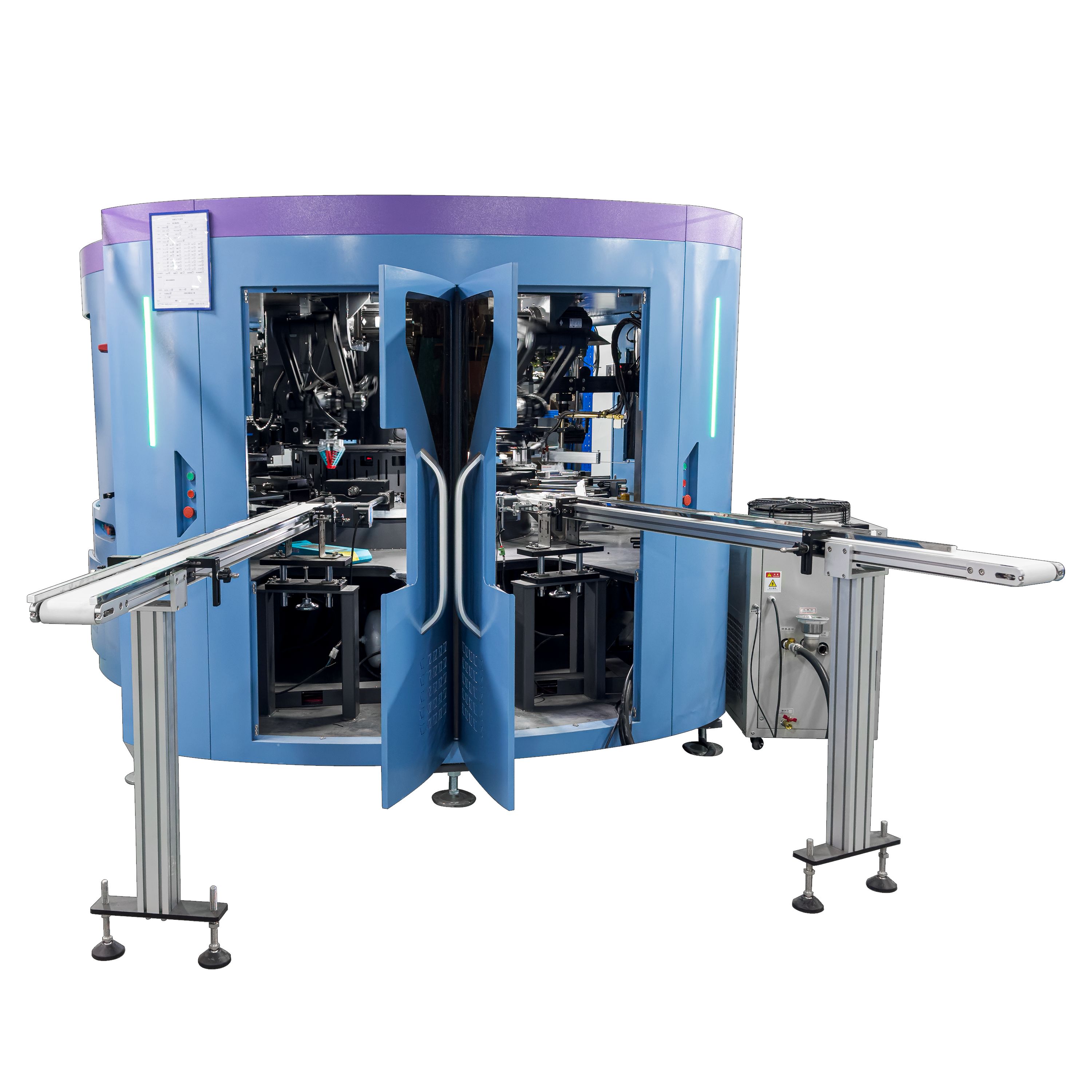

What Is a Horizontal Rotary Automatic Screen Printing Machine?
A horizontal rotary fully automatic screen printing machine uses a horizontal intermittent rotary indexing system to transport workpieces. Products move continuously between multiple stations on a flat rotary table, either clockwise or counterclockwise, completing different processes such as printing, curing, and inspection.
This design enables high integration, continuous production, and full automation.
Key Advantages of Horizontal Rotary Screen Printing Machines
1. Easy Multi-Color Screen Printing (Up to 12 Colors)
The machine adopts a flat rotary table structure, allowing flexible expansion of the number of stations.
• Supports 3 to 12 color printing in one cycle
• Easy to add additional stations as production needs grow
• Ideal for bottle printing and complex multi-color designs
? This makes it highly suitable for industries requiring high-volume, multi-color decoration.
2. Modular Design for Maximum Flexibility
The horizontal rotary system is built around a central turntable, with functional units arranged around it.
Each station can perform a different process, such as:
• Screen printing
• Hot foil stamping
• Heat transfer printing
• Pad printing
• Laser marking
• Digital inkjet printing
• UV or UV LED curing
This modular architecture allows:
• Easy customization
• Integration of multiple printing technologies
• Continuous 24/7 production with different process combinations
3. Seamless Robotic Integration for Bottle Handling

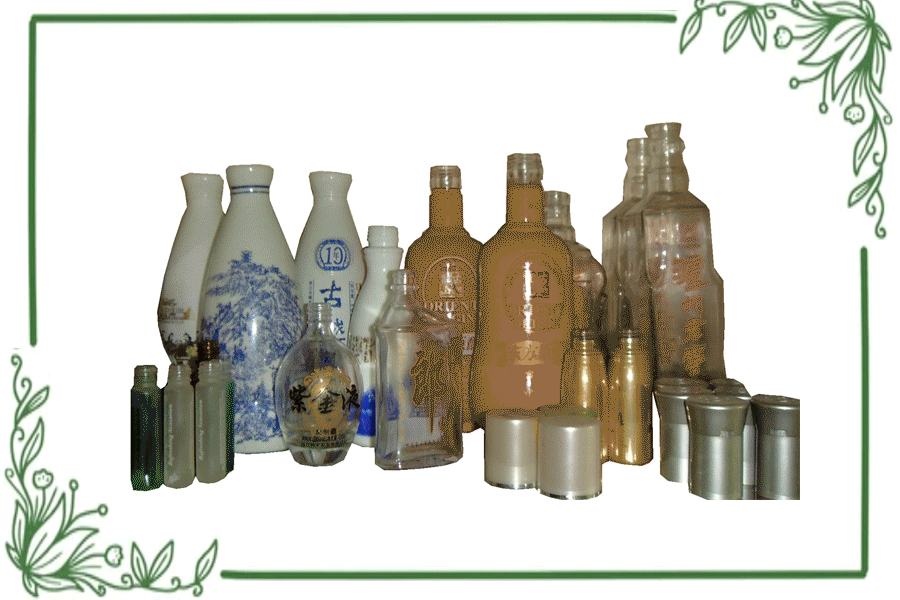

Bottles come in various shapes and materials, including:
• Round, oval, and square
• Plastic, glass, ceramic, and metal
The horizontal rotary structure enables:
• Stable and fast product transfer
• Easy integration with robotic loading and unloading systems
• Smooth connection with existing production lines
Unlike vertical systems, the conveyor belts are positioned outside the turntable, making automation upgrades simpler.
4. High Printing Precision and Stability
Modern machines incorporate advanced technologies such as:
• CCD vision positioning systems
• Precision cam indexers for accurate rotation
• Servo motor control for all key movements
Key benefits:
• Printing accuracy up to 0.01–0.03 mm
• Micron-level control of mechanical errors
• Consistent color registration across multiple stations
The system is controlled via:
• Industrial computer
• Mobile interface (e.g., tablet/iPad)
This ensures intelligent operation and user-friendly control.
Additional Technical Features
Advanced Automation and Integration
• Seamless connection between loading/unloading conveyors and turntable
• Customizable robotic arms for different bottle shapes
• Multi-station configuration with flexible functional unit allocation
Precision Positioning System
• Dual CCD systems for:
• Bottle bottom positioning
• Bottle body alignment
• Ensures accurate print start point and color registration
Pre-Treatment Options
Depending on material type:
• Electrostatic dust removal
• Flame treatment
• Plasma treatment
High-Efficiency Printing and Curing
• Multi-head screen printing + UV LED curing system
• Simultaneous printing and curing
• 3–8 colors printed in one pass
Mechanical and Control Features
• Servo-driven:
• Printing head movement (X/Y axis)
• Screen lifting
• Bottom mold rotation
• Independent start/stop control for:
• Printing stations
• UV LED curing stations
Smart Operation and Remote Control
• Remote monitoring and program modification via network
• Integrated intelligent control system
• “No-part no-stop” function:
• Machine enters standby when no product is detected
• Automatically resumes without restart
Flexible Production Setup
• Adjustable conveyor height: 550 mm – 650 mm
• Loading system includes positioning baffle
• Robots automatically pick and place bottles into fixtures
Applications of Horizontal Rotary Screen Printing Machines
These machines are widely used in:
• Cosmetic packaging (bottles, jars)
• Beverage containers
• Pharmaceutical packaging
• Industrial containers
• Promotional products
Conclusion
The horizontal rotary fully automatic screen printing machine offers significant advantages over vertical systems, including:
• Higher automation and integration
• Easier multi-color expansion
• Superior precision and consistency
• Flexible modular design
• Seamless production line integration
For manufacturers aiming to upgrade to high-efficiency, multi-process printing solutions, this technology represents a powerful and future-proof investment.
