In the printing process of cosmetic packaging, gloss, chemical resistance, and adhesion are the three core indicators. To meet the stringent requirements of high-end beauty brands for packaging appearance and durability, UV inks have become the industry's recognized best choice. The key to achieving ideal curing results with UV inks lies in selecting the right UV curing equipment. It can be said that the choice of UV curing machine directly determines the quality and efficiency of the entire screen printing production line.
From an equipment configuration perspective, the current market mainstream offers two application modes: fully automatic and semi-automatic. Fully automatic screen printing machines are typically equipped with integrated standard UV curing devices. These machines can intelligently link and automatically match the UV lamp power, irradiation area, and printing speed, ensuring that the ink is fully and uniformly cured even during high-speed production. This is the ideal configuration for large-scale cosmetic packaging production.
While the market share of semi-automatic UV curing systems is gradually decreasing, they still hold an important position in small and medium-sized processing enterprises. By combining a semi-automatic screen printing machine with a stand-alone UV curing machine, manufacturers can complete the printing and processing of various common packaging materials such as cosmetic boxes, bottles, tubes, and cups. Its core curing principle is essentially the same as that of a fully automatic system, resulting in lower initial costs and allowing companies to accumulate practical experience, preparing them for future upgrades to automated production lines.
For curved containers, especially various cosmetic bottles, when selecting a curved UV curing machine, four key factors need to be considered: equipment structure, conveyor belt length, support design, and light source technology.

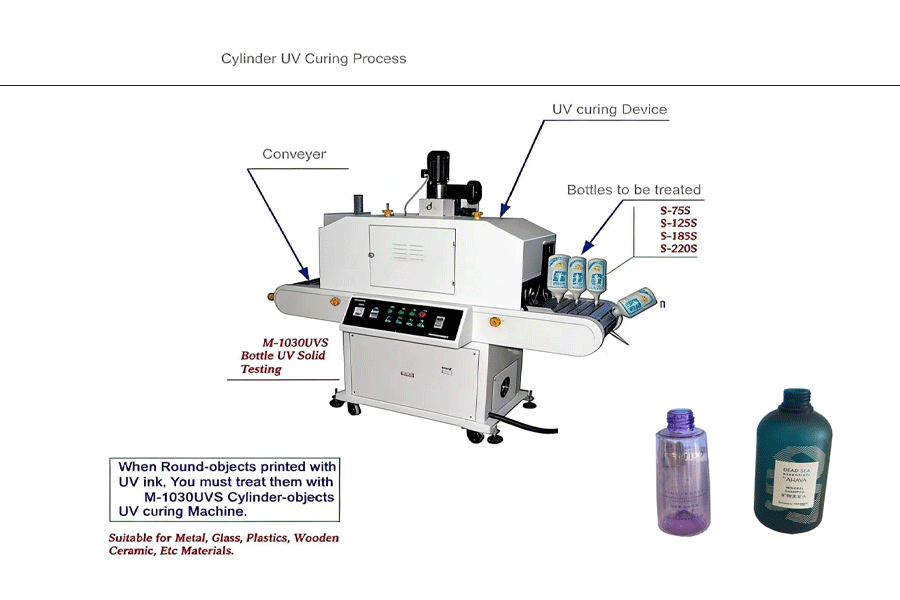

In terms of structural design, most curved UV curing machines use a rotating conveyor belt, allowing the bottle to rotate 360° during transport, ensuring uniform UV irradiation of the circumference. This is suitable for materials that are not easily broken, such as plastic bottles. For glass or ceramic bottles, a flat rotary UV curing machine is recommended to effectively prevent breakage from drops; however, this type of equipment occupies more space and is relatively more expensive.
The length of the conveyor belt is also crucial. The standard input/output section length of a UV curing machine is typically around 500mm. Extended input sections not only keep operators away from UV radiation areas, improving work safety, but also allow for the simultaneous connection of multiple screen printing machines, increasing overall equipment utilization and production efficiency.
The support structure is a crucial component affecting curing uniformity. Curved UV curing machines generally employ a conical support structure to secure the container upside down. Due to significant differences in bottle opening sizes among different products, custom-designed supports with corresponding diameters achieve more precise positioning, reducing wobbling during rotation, resulting in more stable curing and clearer graphics. While custom supports increase costs, this is well worth it for high-quality packaging printing.
Finally, there's the choice of light source technology. Traditional UV curing technology is mature and moderately cost-effective; while UV LED, as a next-generation curing solution, effectively prevents deformation of heat-sensitive materials due to its narrow spectrum, low heat, and low ozone characteristics, significantly improving packaging precision, making it ideal for high-end cosmetic packaging. However, UV LED systems require a higher initial investment; companies can choose flexibly based on their products, materials, and budget.
