The fully automatic ribbon screen printing and hot stamping machine represents the latest innovation in ribbon decoration technology. By integrating single-color automatic screen printing, a drying/curing system, and a rubber roller hot stamping unit, this machine provides a fully automated production line for indirect hot stamping on ribbons, ensuring precision, high adhesion, and consistent quality.

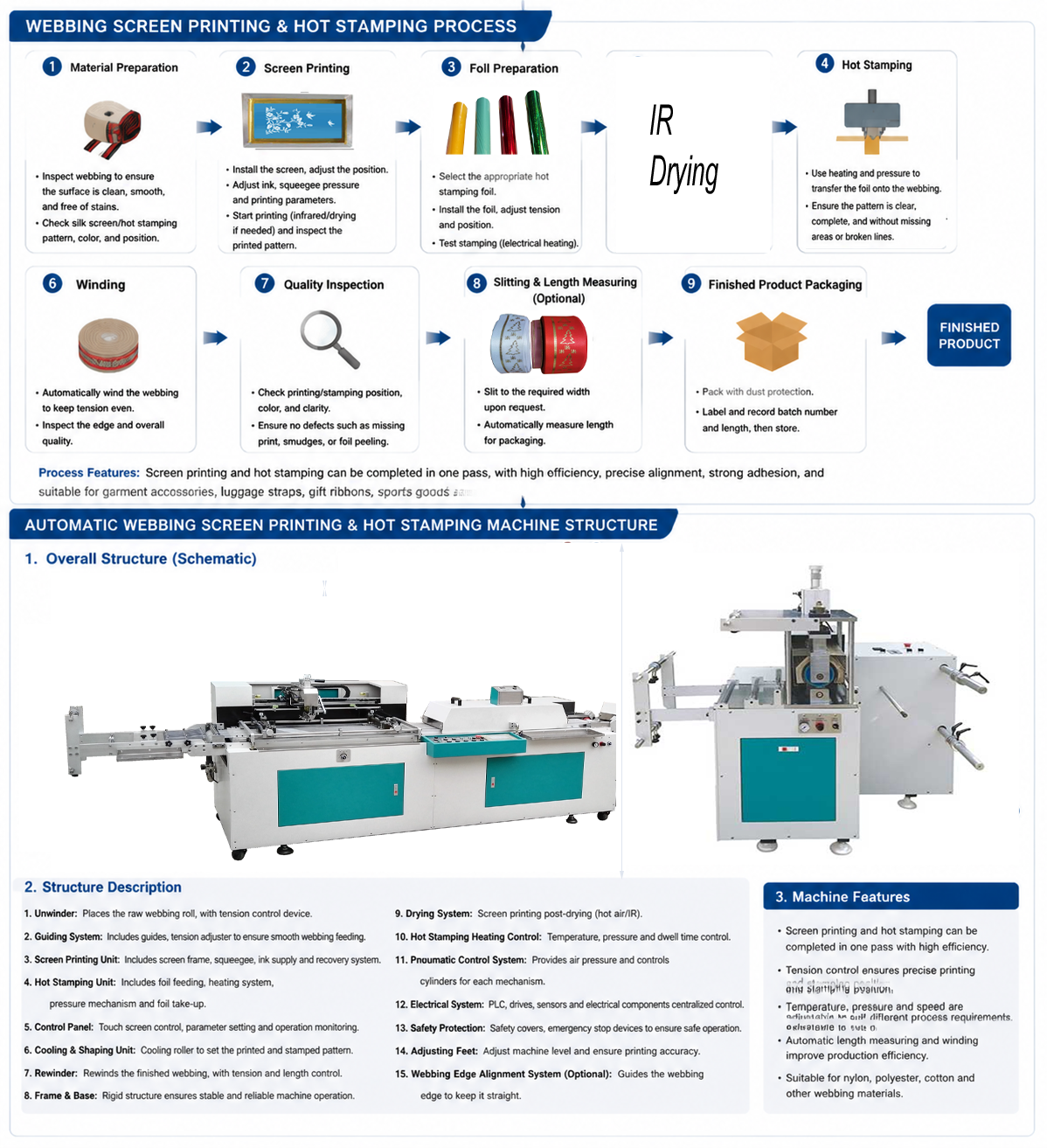

Machine Overview and Workflow
- Screen Printing Adhesive: The screen printing unit deposits a precise adhesive layer on the ribbon surface, forming a bonding base for hot stamping.
- Drying/Curing: The drying unit rapidly cures the adhesive using infrared or hot air technology, ensuring optimal adhesion.
- Hot Stamping Transfer: The hot stamping unit transfers foil only onto the adhesive layer, producing sharp, detailed, and durable patterns.
The production line concludes with a collection and winding system, which can optionally include a cutting unit for finished ribbon lengths.
Key Components and Technical Features
1. Feeding System
- Purpose: Maintain smooth and continuous ribbon feed for accurate printing.
- Components: Roll holders, synchronous belt traction system, guide rollers.
- Technical Highlight: Synchronous belt design ensures ribbon movement is perfectly aligned with the printing and stamping processes.
2. Screen Printing Unit
- Purpose: Print the adhesive layer for precise hot stamping.
- Components: Screen frame, squeegee mechanism, servo/stepper motor controls.
- Advantages: Adjustable printing speed, position, and thickness for optimal adhesive layer uniformity.
3. Drying/Curing Unit
- Purpose: Rapidly cure adhesive to prevent foiling defects.
- Components: Infrared or hot air heating system, air ducts with temperature control, conveyor or roller guidance.
- Performance Tip: Lengthening the drying section and increasing heat output improves efficiency for high-speed production.
4. Hot Stamping Unit
- Purpose: Transfer foil accurately onto pre-printed adhesive areas.
- Components: Rubber hot press roller or flatbed press, temperature control, pressure regulation, foil collection.
- Industry Insight: Only areas coated with adhesive receive foil, ensuring precise, clean, and decorative patterns.
5. Receiving System
- Purpose: Collect finished ribbon rolls neatly.
- Components: Roll shafts, guide wheels, automatic meters, optional cutting machines.
- Functionality: Supports end-user customization with variable lengths.
6. Control System
- Purpose: Provide fully automated and coordinated operation.
- Components: PLC or touchscreen interface, servo/stepper motor drives, digital parameter settings for speed, temperature, pressure, and position.
- Benefit: Ensures consistent quality and reduces human error in high-volume production.
Why Indirect Hot Stamping Is Preferred for Ribbon
Direct hot stamping on webbing or ribbon is rarely recommended due to material limitations:
- Uneven Ribbon Surface: Woven or satin textures create gaps, causing missing prints or pattern defects.
- Poor Adhesion: Adhesive may sink into fiber gaps, reducing foil bonding strength.
- Heat Sensitivity: Many ribbons (polyester, nylon, cotton) are prone to deformation, melting, or charring at temperatures above 100°C.
- Pattern Misalignment: Variations in ribbon width, tension, and texture cause inconsistent foiling results.
Solution: The screen printing → drying → indirect hot stamping process guarantees:
- Sharp and durable patterns
- High production efficiency
- Ribbon integrity and visual appeal
Industry Applications
This machine is widely used in:
- Fashion accessories: Decorative ribbons, belts, and trims
- Gift wrapping: Premium packaging ribbons
- Textile branding: Logos and patterns on promotional ribbons
- Industrial labeling: High-precision decorative ribbons for electronics, toys, and home goods
Conclusion
The fully automatic ribbon screen printing and hot stamping machine is a must-have for ribbon manufacturers seeking:
- High-speed, automated production
- Precise and consistent decorative foiling
- Reduced material damage
- Flexible operation with customizable patterns
This machine represents the industry standard for indirect hot stamping, providing a competitive edge for ribbon decoration businesses worldwide.
